Electrical accessories

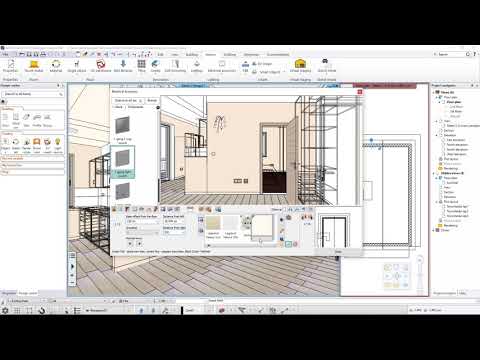

Placing electrical accessories

In ARCHLine.XP there are 3 ways to access electrical accessories. Learn about the easiest method to place them.

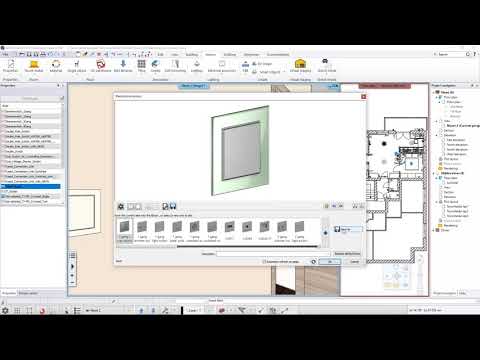

Creating custom electrical accessories

In this video you can learn how to create custom made electrical accessories based on real life manufacturer's products or how to create multi-gang switches.

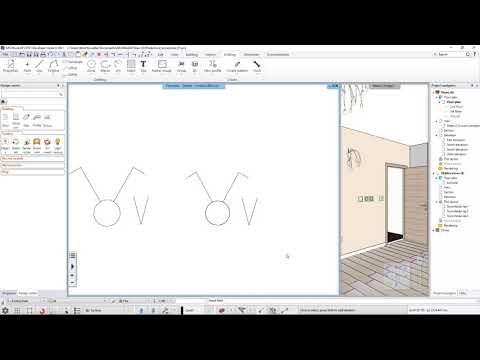

Creating custom electrical symbol

In this video you can learn how to create an electrical symbol which can be accessed from the library later on and assigned to custom objects.

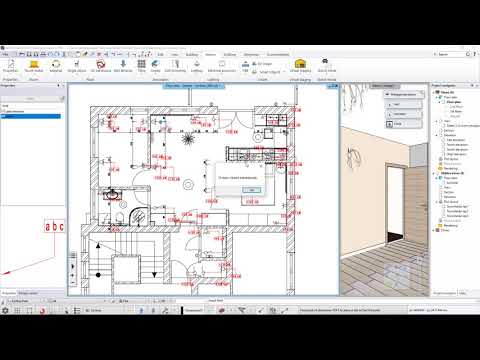

Documentation of electrical accessories

Learn about the documentation of the electrical accessories: elevations, dimensions, consignations.
