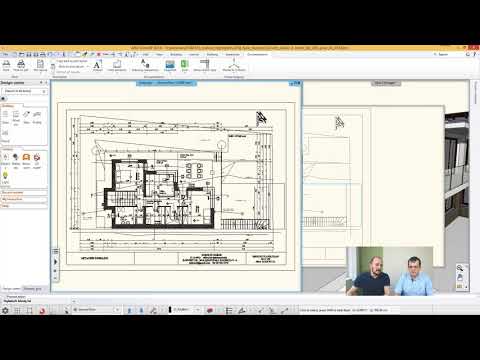

In ARCHLine.XP you can print a pdf document, a plot layout with multiple drawings, or a multi-page pdf that can be created with the print queue option. In this video you can learn how to set up a plot layout, add plot stamp, drawings and use the print queue to have a multiple pages in one pdf file.

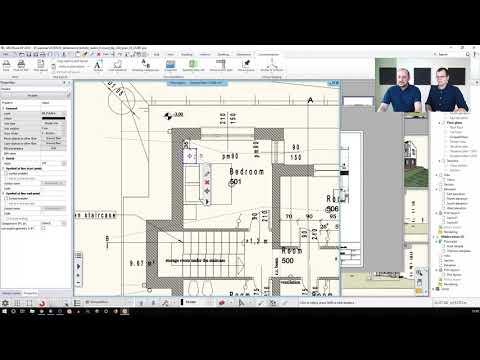

Dimensions, symbols
In this video you will learn where to find and how to add symbols to your projects and how to edit them afterwards. You will also learn how to place dimensions with just a few click.
Underlay floor plan on 3D view

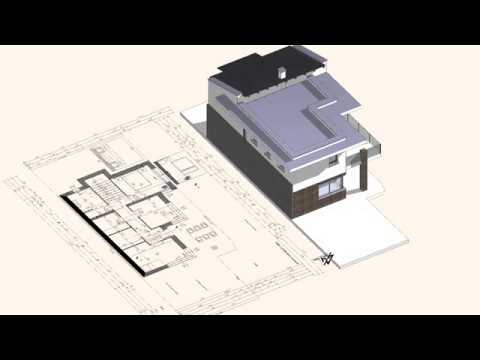

One of the new features of ARCHLine.XP 2018 is that the 2D layout can be displayed in the 3D window.
Drawing comparison
The compare drawings function compares the current drawing with a previous phase and displays the graphical changes visually. You can actualize the result with one click to review the design phases.

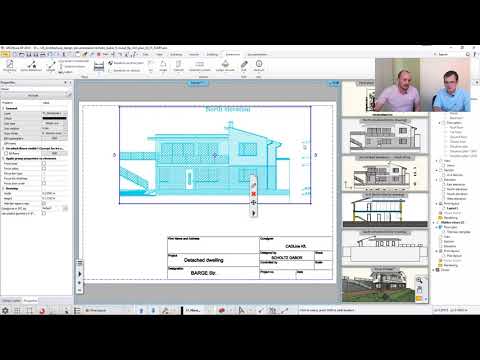

Using plot layout
In order to have differently scaled plans of the same project it is beneficial to create plot layouts. It is also recommended to use them as they provide neat, precise look.

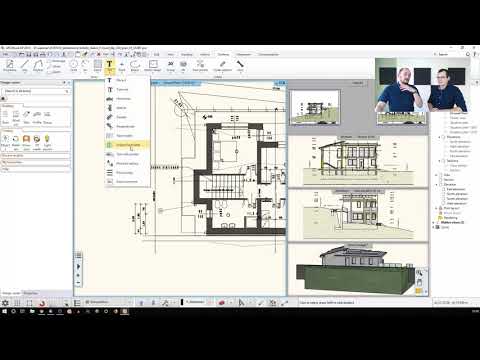

Annotations
In this video you will learn how to add annotations and symbols to your projects.
Unlinking drawings into 2D copies
In this tutorial video we will show you how to create separate 2D drawings for your model.

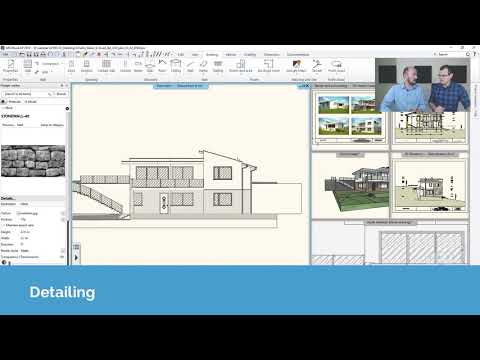

Detailing using CAD tools
In this tutorial video we will show you how to place texts, symbols and dimensions in your plan.

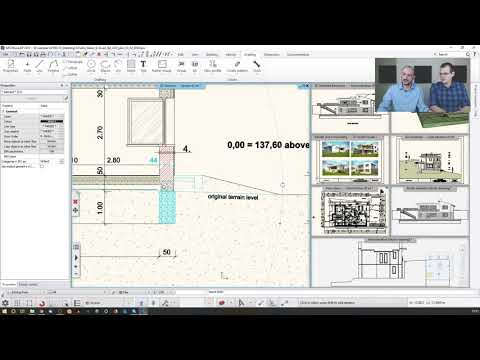

Using stock details and joints
In this tutorial video we will show you how to use nodes in ARCHLine.XP.
Working with layouts
In this tutorial video we will show you how to work with layouts.
