How to make custom shaped window sill?

You can customize window sill easily to apply bottom rake (sloped bottom sill)



Nyilaszarok falnyilasanak atmeretezese, parkany athelyezese_5.png



1, Open the window properties dialog and select the Interior and exterior sills tab. Activate the Profile cross-section option (in this case only the interior sill will be edited).

Nyilaszarok falnyilasanak atmeretezese, parkany athelyezese_6_eng.png

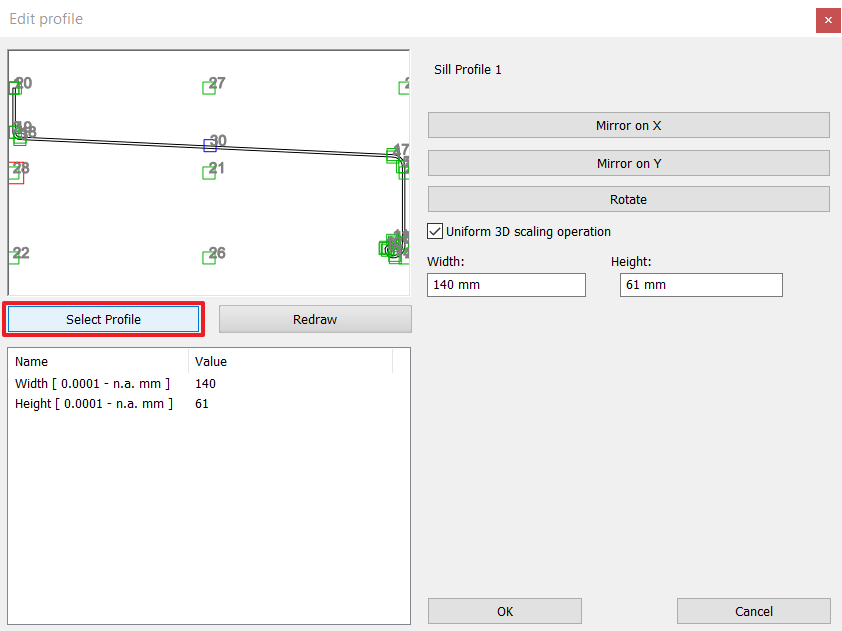

2, In the pop-up window click on the Select profile button, then select the appropriate profile. You can also use your own profile.

Nyilaszarok falnyilasanak atmeretezese, parkany athelyezese_7_eng.png

Nyilaszarok falnyilasanak atmeretezese, parkany athelyezese_81_eng.png

3, After selecting the appropriate profile, enter a reference point in the upper plane of the profile and, if necessary, adjust the size.

Nyilaszarok falnyilasanak atmeretezese, parkany athelyezese_91_eng.png

Accept the changes and the program will automatically display them in the 3D view.

Nyilaszarok falnyilasanak atmeretezese, parkany athelyezese_101.png

Nyilaszarok falnyilasanak atmeretezese, parkany athelyezese_11_eng.png
